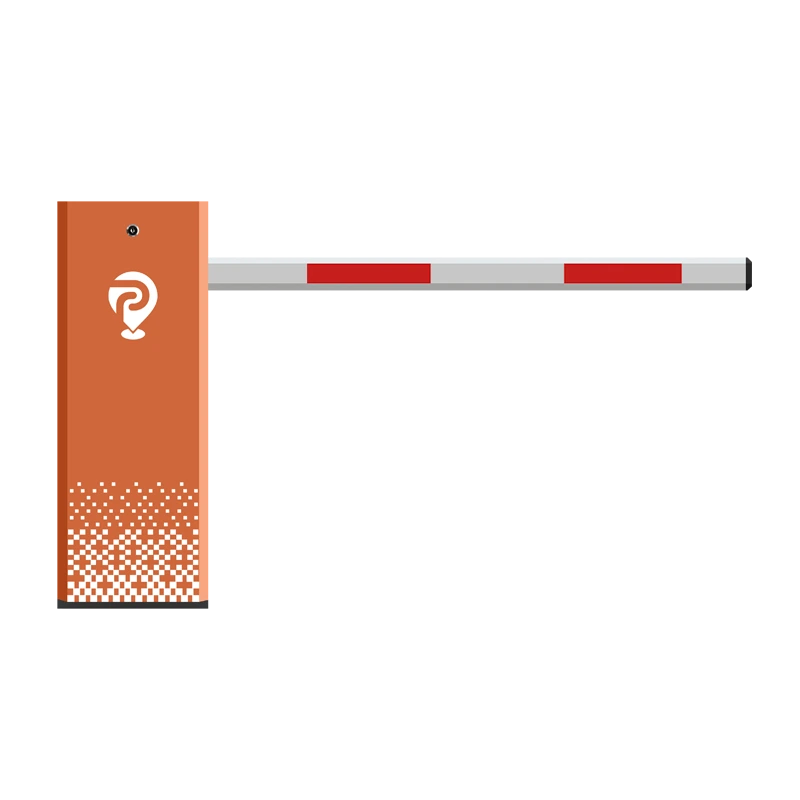

Barrier Gate for High Quality Automatic Parking Management ZY-YD01
The Barrier Gate is an automated access control system designed to manage vehicle entry and exit in parking lot.
The ZY-YD01 series vehicle barrier gate is a next-generation DC brushless barrier system developed by Shenzhen Zionpark, integrating the company's technological advantages with market-leading features to deliver rapid operation and exceptional stability for vehicle access control.
Featuring digital control technology, the ZY-YX01 provides real-time operation monitoring with intelligent management. It supports wireless remote control (lift/lower/stop) or manual button operation. The modular motor design ensures precision and supports multiple safety systems including ground loop, radar, and infrared anti-collision.
With an advanced electrostatic powder coating (baked at 180°C–250°C), the product offers corrosion resistance, color retention, and easy maintenance while maintaining a premium aesthetic appearance.
Key Features
DC brushless motor: Compact size with high torque output; supports straight arms (1-6m) without spring replacement
Servo control technology: Adjustable speed with minimized vibration for smooth operation
Voltage stability: 24V DC brushless motor immune to power fluctuations
Durable construction: Aluminum alloy die-casting for high strength, optimized heat dissipation, and 1M+ operation cycles
Industrial-grade controller:
Inputs: Open/Close/Stop/Ground loop/Anti-collision
Outputs: Dry contact status signals
Built-in digital display and keypad for easy configuration
Smart digital menu: Simplified parameter adjustment and maintenance
Remote control: Optional transmitter for lift/lower/stop commands
Safety systems: Infrared/radar anti-collision (external PSU required)
Product Parameters
|
ZY-YD01 DC Brushless Barrier |
|
|
Power Supply |
AC 220V ±10% 50/60Hz |
|
Motor |
100W DC Brushless |
|
Input Voltage |
24V DC |
|
Rated/Peak Current |
8A / 30A |
|
Arm Length |
Straight ≤6m / Articulated ≤4m |
|
Protection |
Overcurrent/Overvoltage/Short-circuit |
|
Input Signals |
Open/Close/Stop/Ground loop/Anti-collision |
|
Output Signals |
Dry contact (Open/Close status) |
|
Dimensions |
320×248×980mm |
