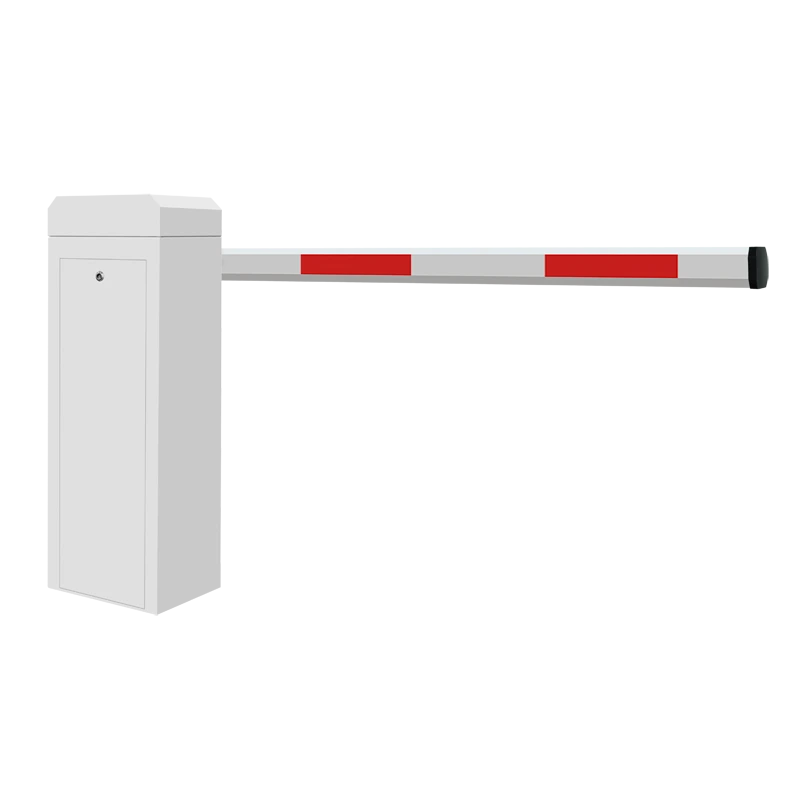

Automatic Barrier Gate Next-Generation Access Control with Enhanced Performance
Applications:
Ideal for parking lots, gated communities, toll stations, corporate campuses, warehouses, and other facilities requiring automated vehicle access management.
Core Advantages
Smart Control System:
● IoT-enabled for remote monitoring and management via cloud platforms.
● Compatible with license plate recognition, RFID cards, mobile payment, and other access control methods.
● Built-in data logging for generating vehicle traffic reports.
Enhanced Power System:
● 24V brushless DC motor for improved energy efficiency and reduced maintenance.
● 20% increase in torque, supporting faster lifting speeds (adjustable from 2.5 to 5 seconds).
● Patented deceleration mechanism reduces operational noise to below 55 dB.
All-Weather Adaptability:
● IP54 protection rating, suitable for extreme temperatures (-40°C to +80°C).
● Galvanized steel housing with anti-corrosion coating ensures a lifespan of 10+ years.
Technical Specifications
● Motor Type: 24V brushless DC motor
● Boom Length: 3m/4m/6m (customizable)
● Lifting Time: Adjustable (2.5-5 seconds)
● Rated Power: 120W-180W
● Operating Temperature: -40°C to +80°C
● Protection Rating: IP54
● Communication Interfaces: RS485/TCP/IP (optional)
● Safety Features: Dual anti-crash protection (loop detector + infrared), emergency manual release.
Smart Features
● OTA remote firmware updates.
● Real-time status monitoring and fault alerts.
● Adaptive traffic flow adjustment mode.
● Optional integrated LED advertising display.
● Compatible with mainstream parking management systems.
Applications
● Smart commercial complex parking lots.
● Logistics park vehicle scheduling.
● High-end residential community entrances.
● Highway toll stations.
● Industrial park access control.
Service Support:
● 18-month warranty.
● 7×24-hour technical support.
● 50+ service centers across the country.
Easy Installation & Maintenance
Designed for straightforward deployment with standard mounting hardware. Minimal maintenance requirements due to its modular design and high-quality components.
Applications
Ideal for parking lots, gated communities, toll stations, corporate campuses, warehouses, and other facilities requiring automated vehicle access management.
Product Parameters
|
ZY-YD03 DC Brushless Barrier |
|
|
Power Supply |
AC 220V ±10% 50/60Hz |
|
Motor |
100W DC Brushless |
|
Input Voltage |
24V DC |
|
Rated/Peak Current |
8A / 30A |
|
Arm Length |
Straight ≤6m / Articulated ≤4m |
|
Protection |
Overcurrent/Overvoltage/Short-circuit |
|
Input Signals |
Open/Close/Stop/Ground loop/Anti-collision |
|
Output Signals |
Dry contact (Open/Close status) |
