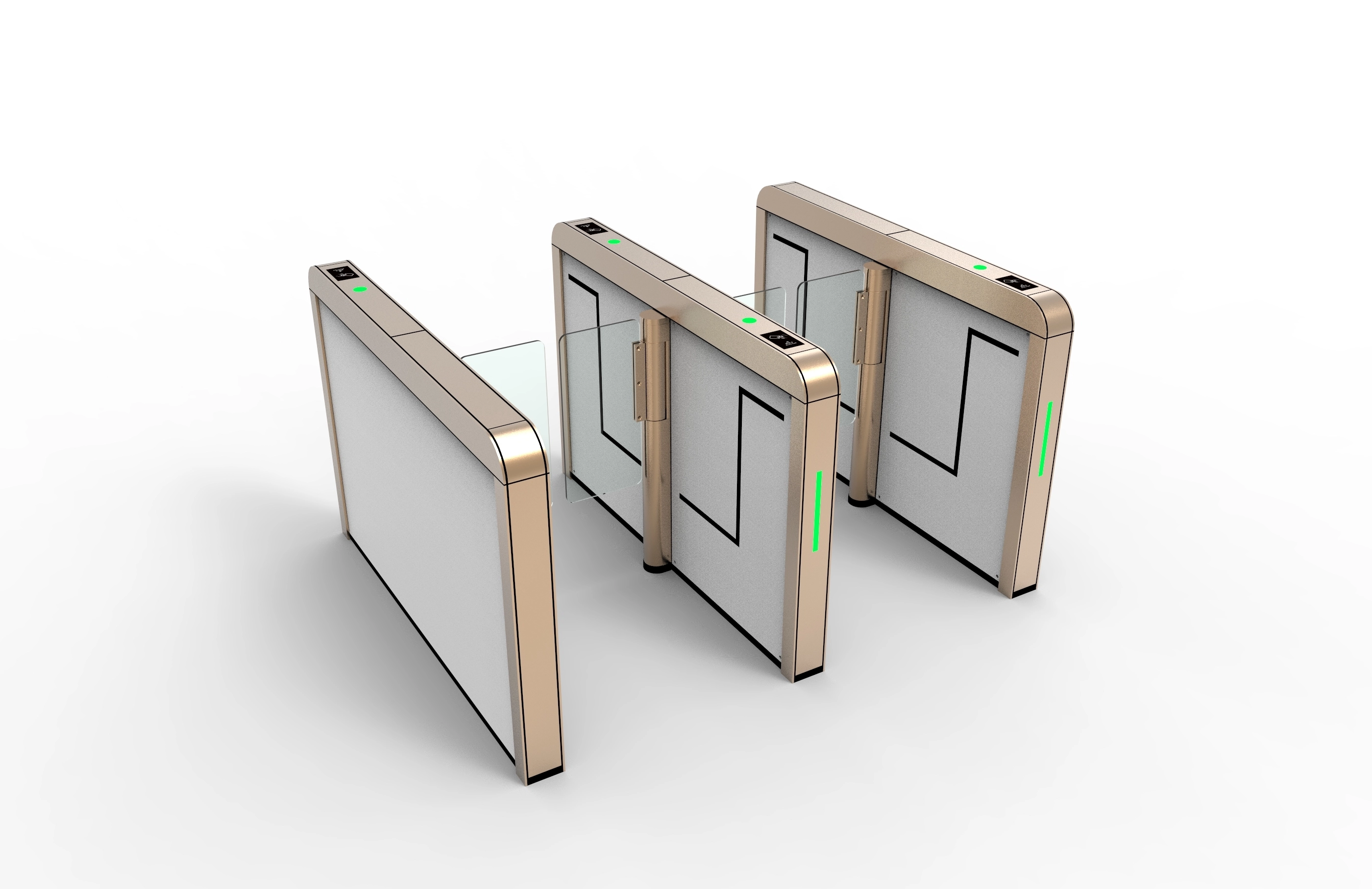

2025 Zionpark Best Performance Security Retractable Turnstile Access Control Flap Gate
Chassis Material: Entire unit made of stainless steel with high-precision machining
Operating Voltage: AC 220±10%V, 50±10%Hz
Power Consumption: 100W
Drive Motor: 24V low-voltage brushless servo motor
Impact-resistant, damage-free mechanism
Dimensions: L1500*W120*H1030mm (Custom sizes available)
Swing Arm Rotation Angle: 180 degrees
Swing Direction: One-way or two-way
Operating Environment: Indoor, outdoor (under shelter) -10℃～70℃; Relative humidity: ≤90%, no condensation
Gate Opening/Closing Time: Adjustable 0.8-1 second
Passage Speed: 30 people/minute (always open), 25-30 people/minute (always closed)
Time to Enter Passable State After Power On: 3 seconds
Automatic Reset Time After Malfunction: 10 seconds
Normal Service Life: Over 20 million continuous rotations
Gate Opening Angle: 90±5 degrees
Noise Level: <50dB
Communication Interface: Standard RS232 interface
Side Channel Indicator Light
Input Interface: Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA
Operating Voltage: AC 220±10%V, 50±10%Hz
Power Consumption: 100W
Drive Motor: 24V low-voltage brushless servo motor
Impact-resistant, damage-free mechanism
Dimensions: L1500*W120*H1030mm (Custom sizes available)
Swing Arm Rotation Angle: 180 degrees
Swing Direction: One-way or two-way
Operating Environment: Indoor, outdoor (under shelter) -10℃～70℃; Relative humidity: ≤90%, no condensation
Gate Opening/Closing Time: Adjustable 0.8-1 second
Passage Speed: 30 people/minute (always open), 25-30 people/minute (always closed)
Time to Enter Passable State After Power On: 3 seconds
Automatic Reset Time After Malfunction: 10 seconds
Normal Service Life: Over 20 million continuous rotations
Gate Opening Angle: 90±5 degrees
Noise Level: <50dB
Communication Interface: Standard RS232 interface
Side Channel Indicator Light
Input Interface: Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA
Control Technology: Advanced servo motor drive algorithm
Input Power: DC 24V
Feedback: Linear Hall effect encoder
Analog Command Input: -10V~10V, Input impedance 10KΩ
Input Signals: Enable, Alarm Clear, Forward Limit, Reverse Limit, Control Mode
Output Signals: Positioning Complete, Voice Alarm
Protection Functions: Clutch lock-up for position error
Monitoring Functions: Speed, Current Position, Current Pulse Frequency, Position Deviation, Motor Current, Analog Input Value, etc.
Communication Function: RS232 communication with PC
Indicators: Red (Alarm), Green (Operating) LEDs
Operating/Storage Temperature: 45℃/-20℃~55℃
Operating/Storage Humidity: 40%~80% / 0%~90% (no condensation)
Protection Level: IP10
Vibration/Shock Resistance: 4.9m/s²/19.6m/s²
Altitude: <1000m; derate for altitudes above 1000m
Atmospheric Pressure: 86/106 kPa
Pulse Types: Pulse + Direction, Pulse + Pulse, A+B 90° Quadrature Pulse
Clutch:
Operating Voltage: DC 24V
Power: 21W
Torque: 100Nm
Arm:
Material: Acrylic/Tempered Glass
Thickness: 8-12mm
Length: 275-400
Input Power: DC 24V
Feedback: Linear Hall effect encoder
Analog Command Input: -10V~10V, Input impedance 10KΩ
Input Signals: Enable, Alarm Clear, Forward Limit, Reverse Limit, Control Mode
Output Signals: Positioning Complete, Voice Alarm
Protection Functions: Clutch lock-up for position error
Monitoring Functions: Speed, Current Position, Current Pulse Frequency, Position Deviation, Motor Current, Analog Input Value, etc.
Communication Function: RS232 communication with PC
Indicators: Red (Alarm), Green (Operating) LEDs
Operating/Storage Temperature: 45℃/-20℃~55℃
Operating/Storage Humidity: 40%~80% / 0%~90% (no condensation)
Protection Level: IP10
Vibration/Shock Resistance: 4.9m/s²/19.6m/s²
Altitude: <1000m; derate for altitudes above 1000m
Atmospheric Pressure: 86/106 kPa
Pulse Types: Pulse + Direction, Pulse + Pulse, A+B 90° Quadrature Pulse
Clutch:
Operating Voltage: DC 24V
Power: 21W
Torque: 100Nm
Arm:
Material: Acrylic/Tempered Glass
Thickness: 8-12mm
Length: 275-400
