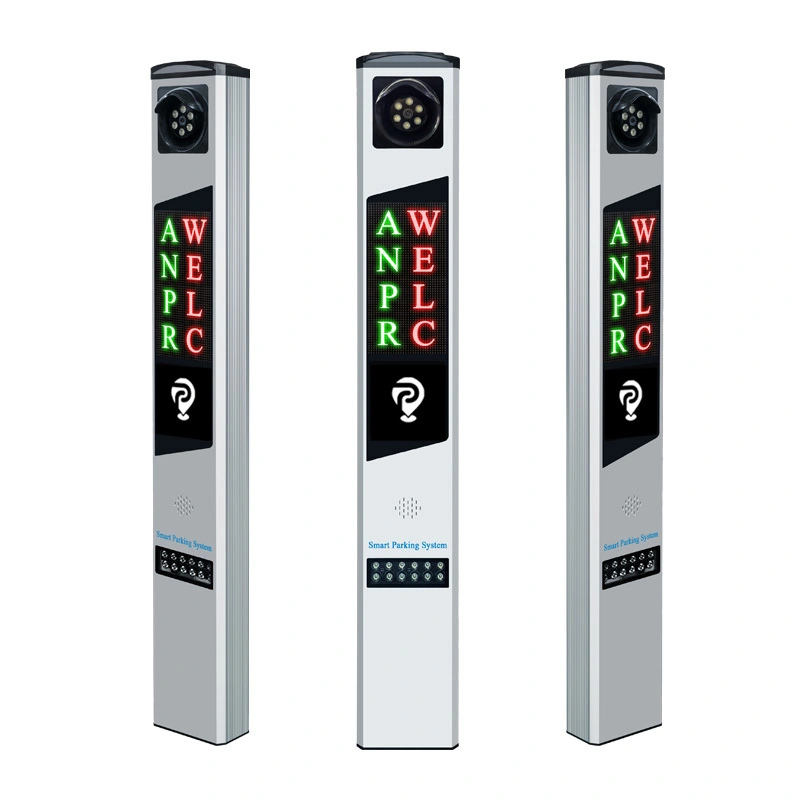

Ultra-Accurate License Plate Recognition Camera With Deep Learning AI
The ZY-YS03 is a state-of-the-art license plate recognition camera designed for modern traffic management and security applications. Combining advanced AI algorithms with superior imaging technology, it delivers exceptional accuracy in vehicle identification under various conditions.
Whether for parking management, law enforcement, or smart city infrastructure, the ZY-YS03 offers reliable performance and seamless integration.
Core Advantages
AI-Powered Recognition:
● Deep learning algorithms for >99% accuracy in license plate recognition (LPR).
● Supports global license plate formats, including alphanumeric and special characters.
● Real-time processing with minimal latency (<0.2 seconds).
High-Resolution Imaging:
● 2MP/5MP progressive scan CMOS sensor with wide dynamic range (WDR).
● Adaptive infrared illumination for clear imaging day and night (0 lux with IR).
● Automatic exposure control to handle glare, shadows, and varying lighting conditions.
● Durability & Adaptability:
● IP67-rated weatherproof housing for outdoor use (-30°C to +70°C).
● Corrosion-resistant materials and built-in surge protection for longevity.
Technical Specifications
● Image Sensor: 2MP/5MP CMOS
● Recognition Accuracy: >99%
● Recognition Speed: <0.2 seconds
● IR Distance: Up to 20 meters (nighttime)
● Lens: Motorized varifocal (e.g., 6-22mm) for flexible field of view
● Communication: TCP/IP, RS485, PoE+ (Power over Ethernet)
● Storage: On-edge data logging (supports SD card up to 256GB)
● Power Supply: 12V DC or PoE+ (IEEE 802.3at)
Smart Features
Multi-Vehicle Tracking: Simultaneously captures and processes multiple lanes.
Data Integration: Exports logs to cloud platforms or parking management software.
Anti-Spoofing: Detects and alerts for fake, obscured, or tampered plates.
Optional Features:
● Integrated LED fill-light for enhanced image clarity.
● Vehicle make/model/color recognition.
● Traffic analytics (e.g., peak hour reports).
Applications
● Automated parking lot entry/exit systems.
● Toll collection and highway monitoring.
● Law enforcement and security checkpoints.
● Smart city traffic management.
● Gated communities and corporate campuses.
Applications
● Parking lot access control and payment systems.
● Traffic law enforcement and violation detection.
● Toll collection on highways and bridges.
● Security monitoring for campuses and commercial properties.
● Smart city traffic data collection and analysis.
Application scenarios
Product Parameters
|
Model: ZY-YS03 |
||
|
Name |
Item |
Spec |
|
LED Screen |
Size |
160mm*320mm（P4.75 upper red and lower green |
|
Resolution |
Single LED module 64*64 dot matrix |
|
|
Camera |
Picture output |
500W Pixels JPEG |
|
Min illumination |
0.01Lux |
|
|
Aperture |
Fixed aperture |
|
|
Focal length |
6mm |
|
|
Storage Interface |
SD2.0 standard Micro SD (TF) card, max capacity 32G |
|
|
Wide dynamic range |
≥100dB |
|
|
X04 board |
Voice |
Can broadcast various voices |
|
Display |
Support various LED modules |
|
|
Standard parameters |
Proof level |
IP42, certain dust and water resistance |
|
Working temperature |
-10℃～60℃ |
|
|
Working humidity |
5%~85% |
|
|
Power |
100W MAX |
|
|
Device Size |
200mm*140mm*1400mm（W*T*H） |
|
|
Weight |
≈10kgs |
|
