High-Performance Ai-Powered License Plate Recognition (Lpr) Camera For Smart Parking
AI Deep Learning Algorithms: Embedded deep learning models for license plate recognition, vehicle make/model recognition (MMR), vehicle color identification, and multi-vehicle tracking, with accuracy exceeding 99%.
Ultra-HD Imaging: 5MP resolution sensor paired with a high definition lens, enabling remote adjustment of focus and zoom.
Detailed Description
Core Features
● AI Deep Learning Algorithms: Embedded deep learning models for license plate recognition, vehicle make/model recognition (MMR), vehicle color identification, and multi-vehicle tracking, with accuracy exceeding 99%.
● Ultra-HD Imaging: 5MP resolution sensor paired with a high definition lens, enabling remote adjustment of focus and zoom.
Adaptability to Extreme Environments
● 1/100,000s ultra-fast shutter speed to eliminate motion blur.
● 120dB True Wide Dynamic Range (WDR) to handle backlight and high-contrast scenarios.
● Intelligent IR illumination (50-meter range) and optional white light compensation ensure clear imaging day and night.
● Multi-Protocol Integration: Supports ONVIF, PSIA, and CGI protocols for seamless integration with parking management systems, VMS platforms, and third-party software.
Hardware Specifications
● Sensor: Progressive Scan CMOS
● Lens: high definition Lens
● Illumination System: High-power IR LED array + optional white light
● Network Interface: Gigabit Ethernet with PoE support (802.3af/at)
● Storage: Micro SD card slot (supports up to 128GB)
● Protection Rating: IP67 dust/waterproof, IK10 vandal-resistant housing, aluminum alloy + PC construction
● Operating Temperature: -30°C to 70°C
Application Scenarios
● Smart Parking Management: Automated parking lots, license plate-based payment, automatic access for monthly subscribers.
● Traffic Enforcement: Speed violation detection, red-light infringement recognition, blacklist vehicle alerts.
● Security Monitoring: Gated community access control, vehicle trajectory tracking, real-time alarm notifications.
● Data Analytics: Traffic flow statistics, peak-hour analysis, user behavior reports.
Installation & Maintenance
● Installation Options: Wall/pole mounting with 360° horizontal and 90° vertical adjustment.
● Configuration: Web-based interface or mobile app for remote setup and batch deployment.
● Maintenance Features: Auto-calibration, remote firmware updates, self-diagnostic functions.
Compliance & Certifications
● Certified with CE, FCC, and RoHS
● Complies with ISO9001 Quality Management System
● Supports GDPR data privacy protocols
Packaging & Support
● Standard Package: Camera unit, mounting bracket, waterproof connectors, quick start guide.
● Warranty: 2-year warranty with lifetime technical support.
● Delivery: In stock, ships within 3-5 business days.
Application scenarios
Product Parameters
|

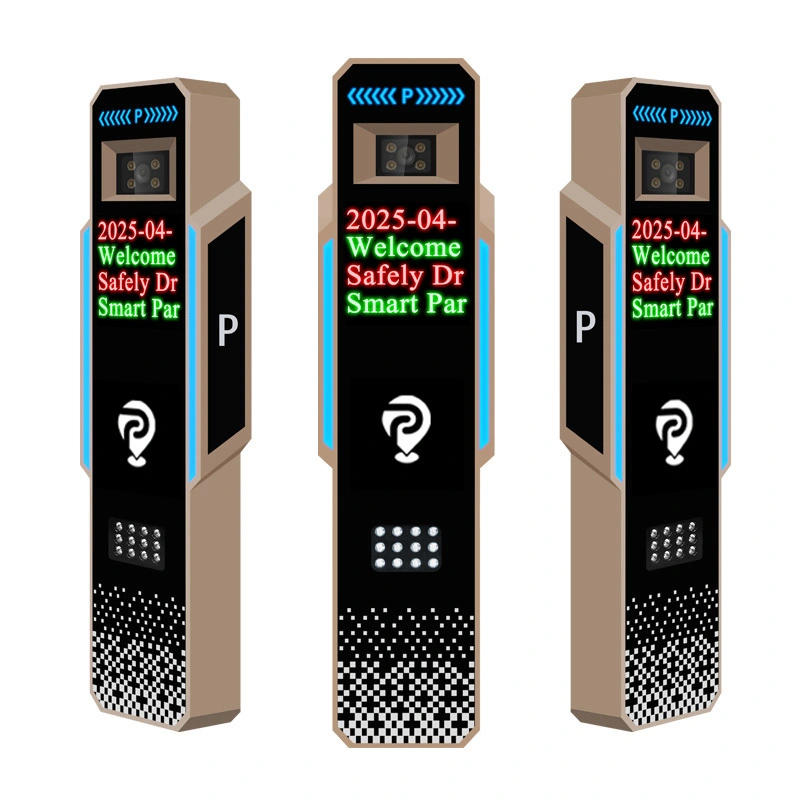

Model: ZY-YS06 |
||
|
Name |
Item |
Spec |
|
LED Screen |
Size |
160mm*320mm (P4.75 upper red and lower green |
|
Resolution |
Single LED module 64*64 dot matrix |
|
|
Camera |
Picture output |
500W Pixels JPEG |
|
Min illumination |
0.01Lux |
|
|
Aperture |
Fixed aperture |
|
|
Focal length |
6mm |
|
|
Storage Interface |
SD2.0 standard Micro SD (TF) card, max capacity 32G |
|
|
Wide dynamic range |
≥100dB |
|
|
X04 board |
Voice |
Can broadcast various voices |
|
Display |
Support various LED modules |
|
|
Standard parameters |
Proof level |
IP42, certain dust and water resistance |
|
Working temperature |
-10℃～60℃ |
|
|
Working humidity |
5%~85% |
|
|
Power |
100W MAX |
|
|
Device Size |
280mm*340mm*1450mm（W*T*H） |
|
|
Weight |
≈15kgs |
|
