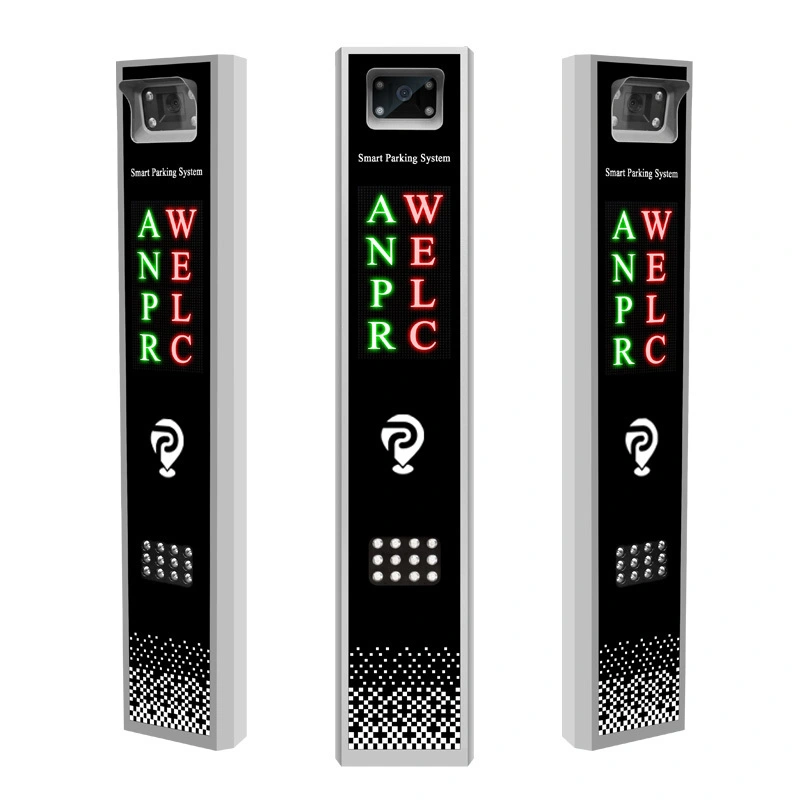

License Plate Recognition Camera Advanced AI Vision for Smart Parking Management
Its rugged housing and adaptive optics make it ideal for round-the-clock operation in all weather conditions, from bustling commercial parking lots to secure residential communities.
Core Advantages
AI-Powered Recognition:
● Deep learning algorithms for >99% accuracy in license plate recognition (LPR).
● Supports global license plate formats, including alphanumeric and special characters.
● Real-time processing with minimal latency (<0.2 seconds).
High-Resolution Imaging:
● 2MP/5MP progressive scan CMOS sensor with wide dynamic range (WDR).
● Adaptive infrared illumination for clear imaging day and night (0 lux with IR).
● Automatic exposure control to handle glare, shadows, and varying lighting conditions.
● Durability & Adaptability:
● IP67-rated weatherproof housing for outdoor use (-30°C to +70°C).
● Corrosion-resistant materials and built-in surge protection for longevity.
Technical Specifications
● Image Sensor: 2MP/5MP CMOS
● Recognition Accuracy: >99%
● Recognition Speed: <0.2 seconds
● IR Distance: Up to 20 meters (nighttime)
● Lens: Motorized varifocal (e.g., 6-22mm) for flexible field of view
● Communication: TCP/IP, RS485, PoE+ (Power over Ethernet)
● Storage: On-edge data logging (supports SD card up to 256GB)
● Power Supply: 12V DC or PoE+ (IEEE 802.3at)
Smart Features
Multi-Vehicle Tracking: Simultaneously captures and processes multiple lanes.
Data Integration: Exports logs to cloud platforms or parking management software.
Anti-Spoofing: Detects and alerts for fake, obscured, or tampered plates.
Optional Features:
● Integrated LED fill-light for enhanced image clarity.
● Vehicle make/model/color recognition.
● Traffic analytics (e.g., peak hour reports).
Applications
● Automated parking lot entry/exit systems.
● Toll collection and highway monitoring.
● Law enforcement and security checkpoints.
● Smart city traffic management.
● Gated communities and corporate campuses.
Compatibility & Integration
● Works seamlessly with Nexpark barrier gates (e.g., ZY-YD02/Y-D04).
● Supports ONVIF, RTSP, and HTTP APIs for third-party integration.
● Compatible with popular parking management platforms.
Service Support:
● 24-month warranty.
● Free firmware updates for algorithm enhancements.
● Global technical support network.
Product Parameters
|
Model: ZY-YS01 |
||
|
Name |
Item |
Spec |
|
LED Screen |
Size |
160mm*320mm（P4.75 upper red and lower green |
|
Resolution |
Single LED module 64*64 dot matrix |
|
|
Camera |
Picture output |
500W Pixels JPEG |
|
Min illumination |
0.01Lux |
|
|
Aperture |
Fixed aperture |
|
|
Focal length |
6mm |
|
|
Storage Interface |
SD2.0 standard Micro SD (TF) card, max capacity 32G |
|
|
Wide dynamic range |
≥100dB |
|
|
X04 board |
Voice |
Can broadcast various voices |
|
Display |
Support various LED modules |
|
|
Standard parameters |
Proof level |
IP42, certain dust and water resistance |
|
Working temperature |
-10℃～60℃ |
|
|
Working humidity |
5%~85% |
|
|
Power |
100W MAX |
|
|
Device Size |
240mm*170mm*1385mm（W*T*H） |
|
|
Weight |
≈12kgs |
|
